BS 40 Maxi Basic

Maximum sealing:
400 × 285 mm

Maximum shell height:
115 mm

Cycles:
bis zu 2 pro Minute

External dimensions:
750 × 970 × 1470 mm*

Maximum film width:
470 mm

Compressed air supply:
6 Bar

Vacuum pump:
40 m³/h

Weight:
205 kg

Electrical connection:
3 phases, 230 / 400 V, 50 Hz **

Power:
2,8 kW

* B × T × H
** Special voltages on request

Types of seals:

Sealing Vacuum/Gas

Features

suitable for:

SEALING PLATES USAGE

Sealing plates usage icon1fache single icon2fachs double icon3fachs triple icon4fachs fourfold
With contour cut max. 400 × 285 280 × 190 130 × 280 285 × 87
Sealing plates usage icon2fachw double icon4fachw fourfold icon6fachw sixfold icon8fachw eightfold
With contour cut max. 400 × 137 187 × 137 100 × 100
Sealing plates usage icon1fachr single icon2fachr double icon3fachr triple icon6fachr sixfold
With contour cut max. ø 280 ø 180 ø 130 ø 100



w x d (in mm)
ø (in mm)



SEALING UNIT

TRAYS AND FOILS

Design

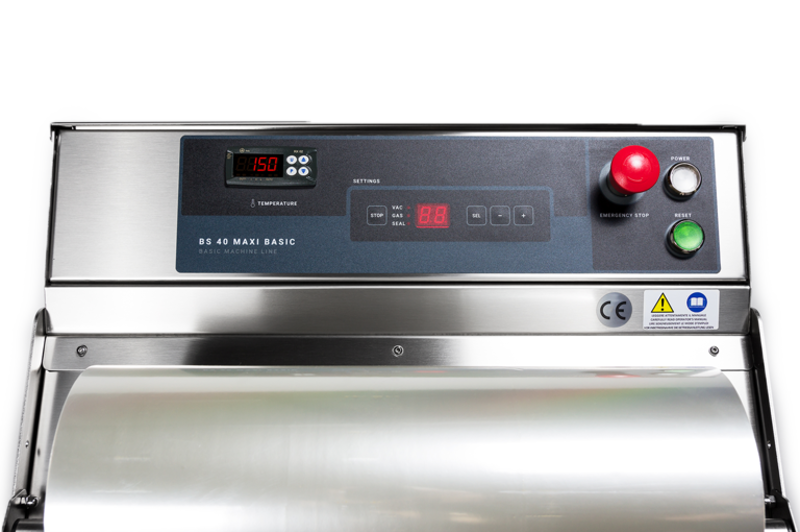

Control System

OPTIONAL EQUIPMENT FOR BASIC SERIES
