BS 47

Maximum sealing:
400 × 275 mm

Maximum shell height:
on request

Cycles:
4 - 5 / 8 - 10 / Min. (with/without vacuum)*

External dimensions:
2,50 × 0,99 × 1,66 m *

Maximum film width:
470 mm

Compressed air supply:
6 bars

Vacuum pump:
100 m³/m

Weight:
550 Kg

Electrical connection:
3 phases, 230 / 400 V, 50 Hz **

Power:
3,9 kW

* Depending on the set process parameters
** w × d × h
*** Special voltages on request



Types of seals:

Sealing Vacuum/Gas Skin

Features

  • Automatic tray feed
  • Quick-change system for sealing unit
  • Powerful Busch vacuum pump
  • Advanced sensor control
  • Precision cutter for neat outlines
  • Siemens PLC

suitable for:

SEALING PLATES USAGE

Sealing plates usage icon1fache single icon2fachs double icon3fachs triple
With contour cut max. 400 x 275 190 x 275 125 x 275
Max. with skin function. 380 x 270 180 x 270
Max. with high skin function. 380 x 270 180 x 270
Sealing plates usage icon1fachr single icon2fachr double icon3fachr triple
With contour cut max. ø 275 ø 190 ø 125
With skin-funktion max. on request on request on request



w × d (in mm)
ø (in mm)

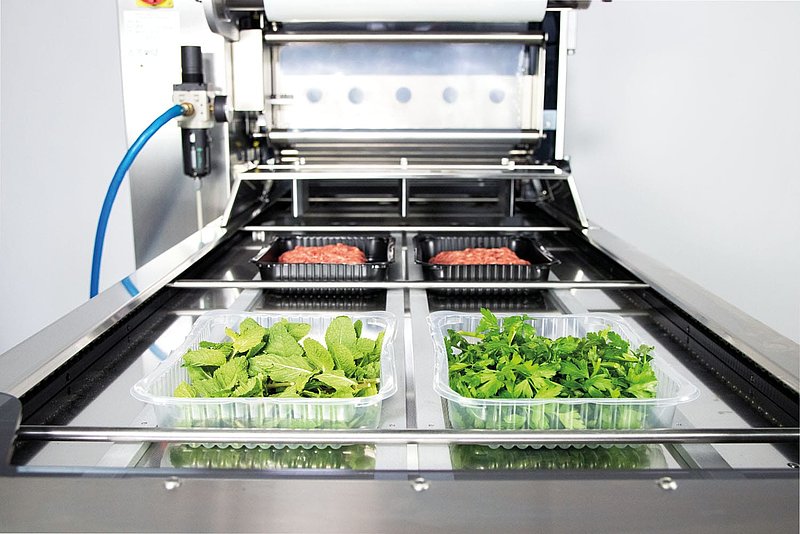

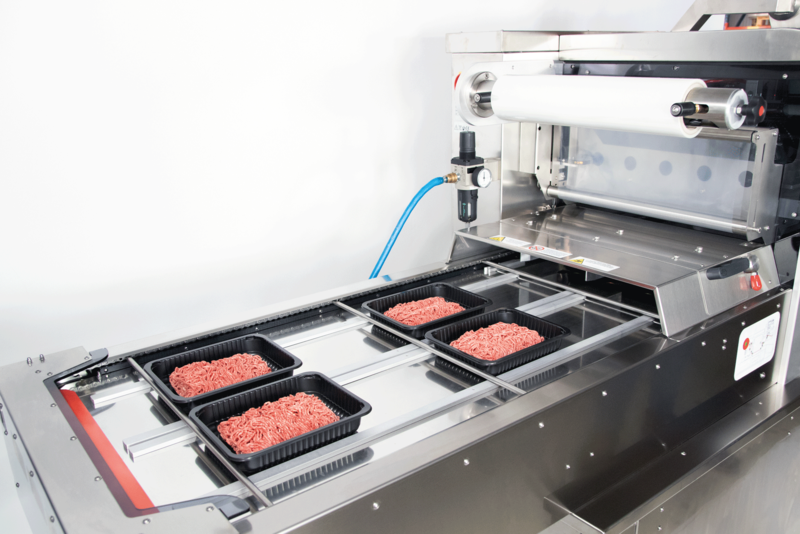

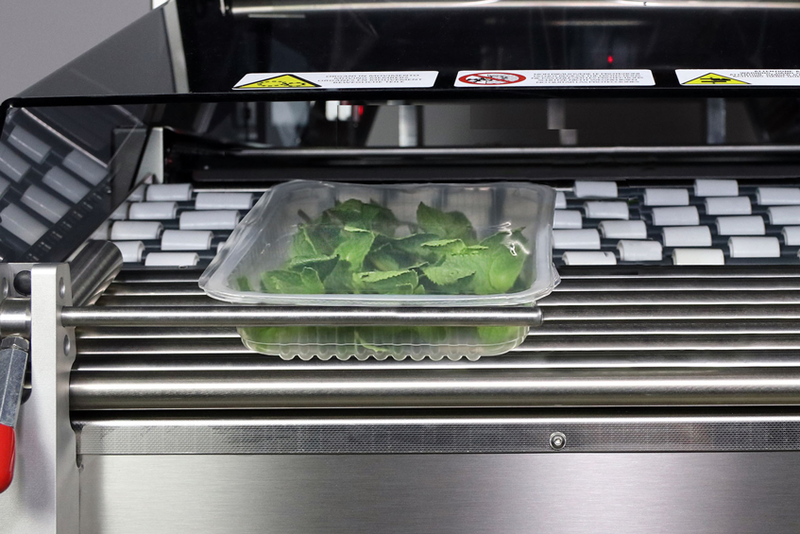

CONVEYOR BELT

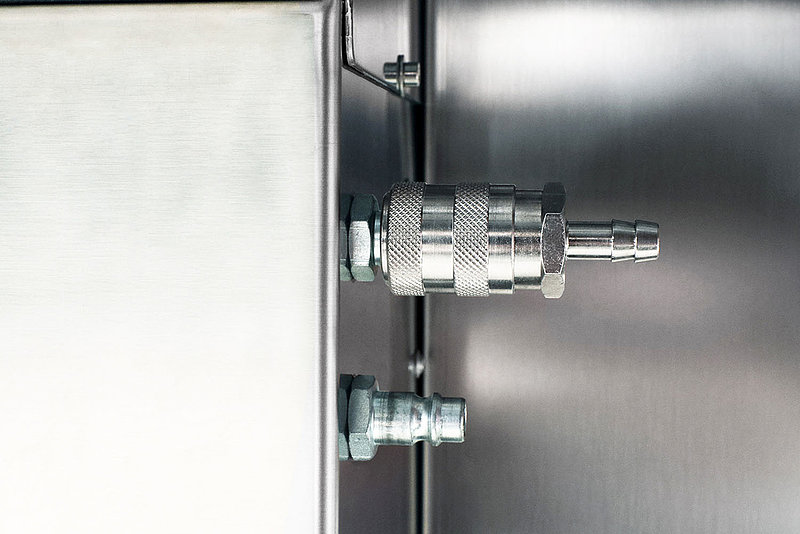

MAP-Function

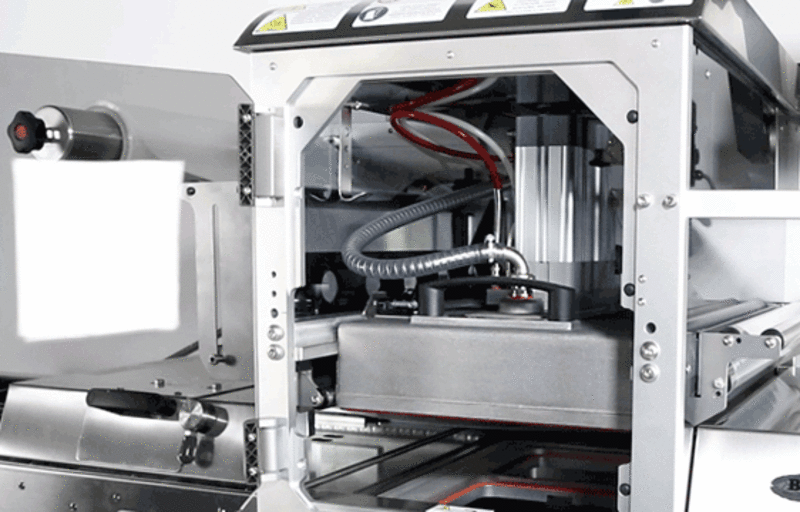

Design

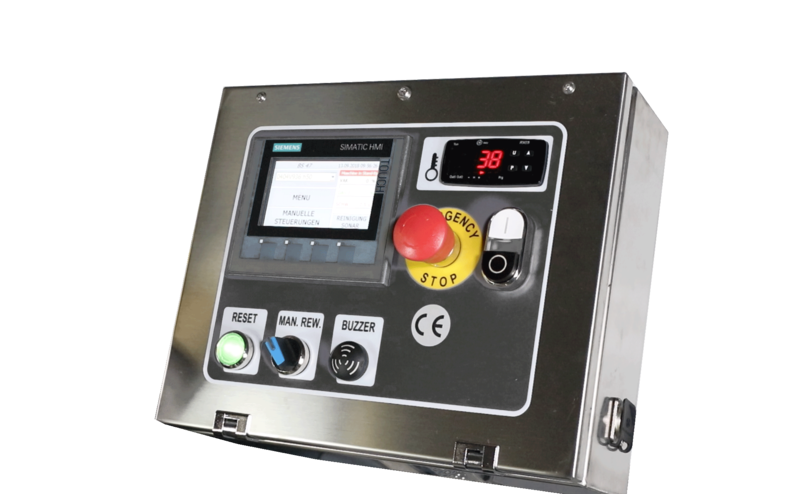

CONTROL SYSTEM

OPTIONAL EQUIPMENT
