BS 52

Maximum sealing:
400 × 275 mm

Maximum shell height:
on request

Cycles:
8 - 10 / Min.

External dimensions:
2,50 × 0,99 × 1,66 m *

Maximum film width:
470 mm

Compressed air supply:
6 bars

Weight:
410 kg

Electrical connection:
3 phases, 230 / 400 V, 50 Hz**

Power:
1,7 kW

* w × d × h
** Special voltages on request

Types of seals:

Sealing

Features

  • Automatic tray feed
  • Quick-change system for sealing unit
  • Huge choice of standard frames
  • Advanced sensor control
  • Precision cutter for neat outlines
  • Siemens PLC

suitable for:

SEALING PLATES USAGE

Sealing plates usage icon1fache single icon2fachs double icon3fachs triple
With contour cut max. 400 x 275 190 x 275 125 x 275
Without contour cut max.* 400 x 285 190 x 280 130 x 280
Sealing plates usage icon1fachr single icon2fachr double icon3fachr triple
With contour cut max. ø 275 ø 190 ø 125
Without contour cut max.* ø 280 ø 190 ø 130

w x d (in mm)
ø (in mm)





CONVEYOR BELT

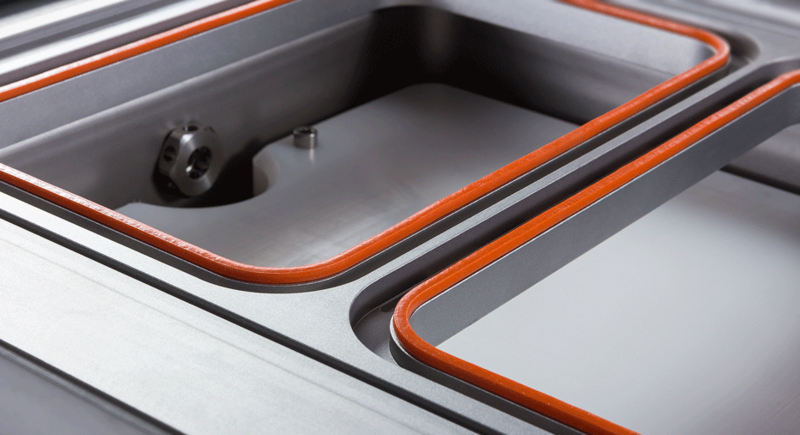

SEALING UNIT

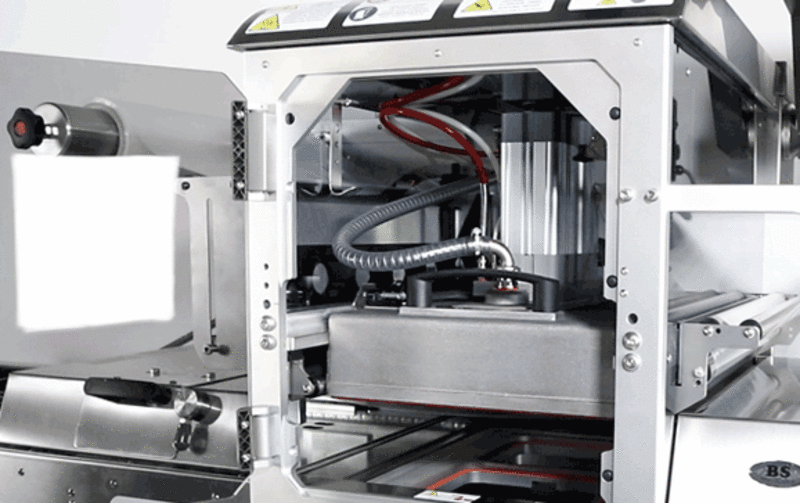

DESIGN

CONTROL SYSTEM

OPTIONAL EQUIPMENT
